OS - Lab 5: Process Management and System Call

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18

// inc/proc.h

struct context {
    // Callee-saved Registers
    uint64_t x19;
    uint64_t x20;
    uint64_t x21;
    uint64_t x22;
    uint64_t x23;
    uint64_t x24;
    uint64_t x25;
    uint64_t x26;
    uint64_t x27;
    uint64_t x28;

    uint64_t x29;  // Frame Pointer
    uint64_t x30;  // Procedure Link Register
};

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36

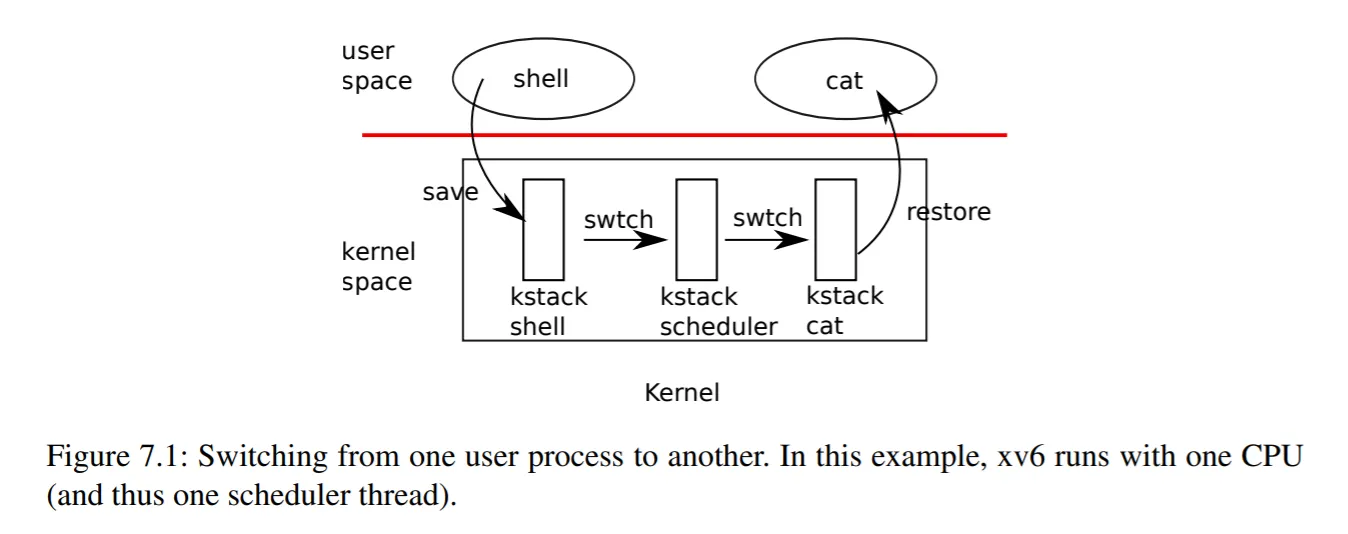

/* kern/swtch.S */

/*
 * Context switch
 *
 *   void swtch(struct context **old, struct context *new);
 *
 * Save current register context on the stack,
 * creating a struct context, and save its address in *old.
 * Switch stacks to new and pop previously-saved registers.
 */
.global swtch

swtch:
    /* Save old callee-saved registers */
    stp x29, x30, [sp, #-16]!
    stp x27, x28, [sp, #-16]!
    stp x25, x26, [sp, #-16]!
    stp x23, x24, [sp, #-16]!
    stp x21, x22, [sp, #-16]!
    stp x19, x20, [sp, #-16]!

    /* Switch stacks */
    mov x19, sp
    str x19, [x0]
    mov sp, x1

    /* Load new callee-saved registers */
    ldp x19, x20, [sp], #16
    ldp x21, x22, [sp], #16
    ldp x23, x24, [sp], #16
    ldp x25, x26, [sp], #16
    ldp x27, x28, [sp], #16
    ldp x29, x30, [sp], #16

    ret

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23

// inc/proc.h

struct proc {
    struct spinlock lock;

    // p->lock must be held when using these:
    enum procstate state;  // Process state
    void* chan;            // If non-zero, sleeping on chan
    int killed;            // If non-zero, have been killed
    int xstate;            // Exit status to be returned to parent's wait
    int pid;               // Process ID

    // wait_lock must be held when using these:
    struct proc* parent;  // Parent process

    // no lock needs to be held when using these:
    char* kstack;             // Bottom of kernel stack for this process
    uint64_t sz;              // Size of process memory (bytes)
    uint64_t* pgdir;          // Page table
    struct trapframe* tf;     // Trapframe for current syscall
    struct context* context;  // swtch() here to run process
    char name[16];            // Process name (debugging)
};

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15

// kern/proc.c

/*
 * Initialize the spinlock for ptable to serialize the access to ptable
 */
void
proc_init()
{
    initlock(&wait_lock, "wait_lock");
    initlock(&pid_lock, "pid_lock");
    for (struct proc* p = ptable.proc; p < &ptable.proc[NPROC]; ++p) {
        initlock(&p->lock, "proc_lock");
    }
    cprintf("proc_init: success.\n");
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44

// kern/proc.c

/*
 * Look through the process table for an UNUSED proc.
 * If found, change state to EMBRYO and initialize
 * state required to run in the kernel.
 * Otherwise return 0.
 */
static struct proc*
proc_alloc()
{
    for (struct proc* p = ptable.proc; p < &ptable.proc[NPROC]; ++p) {
        acquire(&p->lock);
        if (p->state != UNUSED) {
            release(&p->lock);
            continue;
        }

        p->pid = pid_next();

        // Allocate kernel stack.
        if (!(p->kstack = kalloc())) {
            proc_free(p);
            release(&p->lock);
            return NULL;
        }
        char* sp = p->kstack + KSTACKSIZE;

        // Leave room for trap frame.
        sp -= sizeof(*p->tf);
        p->tf = (struct trapframe*)sp;

        // Set up new context to start executing at forkret.
        sp -= sizeof(*p->context);
        p->context = (struct context*)sp;
        memset(p->context, 0, sizeof(*p->context));
        p->context->x30 = (uint64_t)forkret;

        p->state = EMBRYO;
        cprintf("proc_alloc: proc %d success.\n", p->pid);
        return p;
    }
    return NULL;
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24

// kern/proc.c

/*
 * Free a proc structure and the data hanging from it,
 * including user pages.
 * p->lock must be held.
 */
static void
proc_free(struct proc* p)
{
    p->chan = NULL;
    p->killed = 0;
    p->xstate = 0;
    p->pid = 0;
    p->parent = NULL;
    if (p->kstack) kfree(p->kstack);
    p->kstack = NULL;
    p->sz = 0;
    if (p->pgdir) vm_free(p->pgdir, 4);
    p->pgdir = NULL;
    p->tf = NULL;
    p->name[0] = '\0';
    p->state = UNUSED;
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41

// kern/proc.c

/*

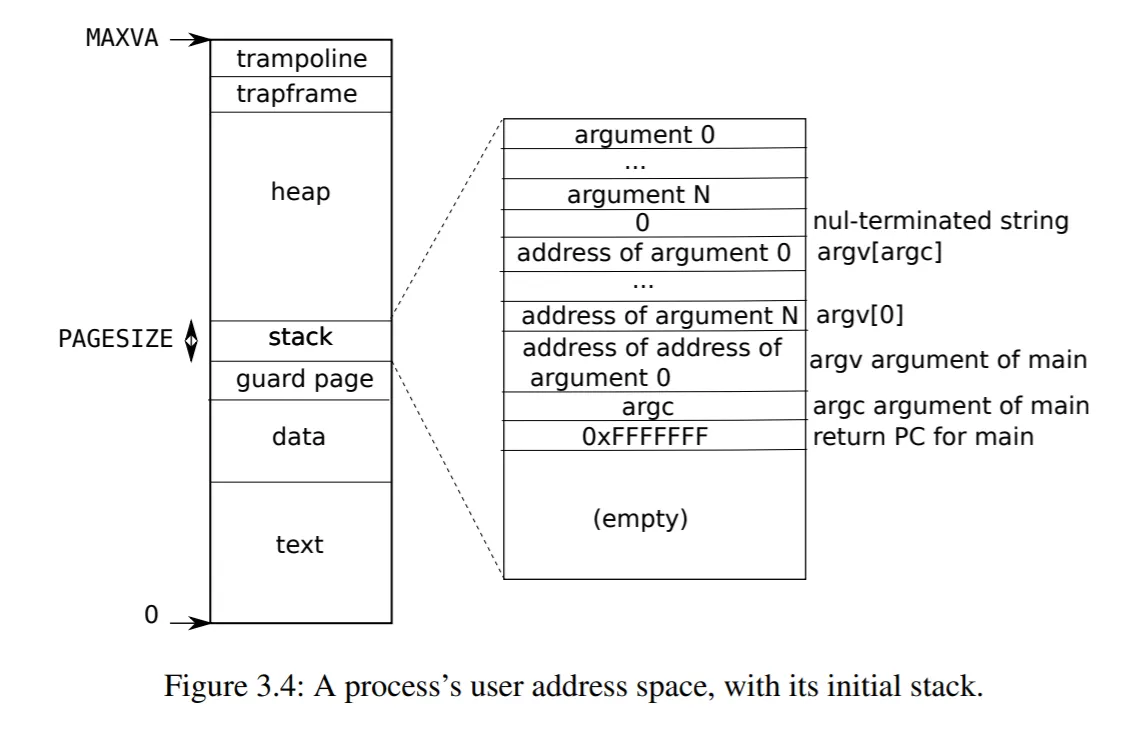

 * Set up first user process (only used once).
 * Set trap frame for the new process to run
 * from the beginning of the user process determined
 * by uvm_init
 */
void
user_init()
{
    extern char _binary_obj_user_initcode_start[];
    extern char _binary_obj_user_initcode_size[];

    struct proc* p = proc_alloc();
    if (!p) panic("\tuser_init: process failed to allocate.\n");
    initproc = p;

    // Allocate a user page table.
    if (!(p->pgdir = pgdir_init()))
        panic("\tuser_init: page table failed to allocate.\n");
    p->sz = PGSIZE;

    // Copy initcode into the page table.
    uvm_init(
        p->pgdir, _binary_obj_user_initcode_start,
        (uint64_t)_binary_obj_user_initcode_size);

    // Set up trap frame to prepare for the first "return" from kernel to user.
    memset(p->tf, 0, sizeof(*p->tf));
    p->tf->x30 = 0;          // initcode start address
    p->tf->sp_el0 = PGSIZE;  // user stack pointer
    p->tf->spsr_el1 = 0;     // program status register
    p->tf->elr_el1 = 0;      // exception link register

    strncpy(p->name, "initproc", sizeof(p->name));
    p->state = RUNNABLE;
    release(&p->lock);

    cprintf("user_init: proc %d (%s) success.\n", p->pid, p->name, cpuid());
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13

// kern/vm.c

/*
 * Get a new page table.
 */
uint64_t*
pgdir_init()
{
    uint64_t* pgdir;
    if (!(pgdir = (uint64_t*)kalloc())) return NULL;
    memset(pgdir, 0, PGSIZE);
    return pgdir;
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19

// kern/vm.c

/*
 * Load binary code into address 0 of pgdir.
 * sz must be less than a page.
 * The page table entry should be set with
 * additional PTE_USER|PTE_RW|PTE_PAGE permission
 */
void
uvm_init(uint64_t* pgdir, char* binary, uint64_t sz)
{
    char* mem;
    if (sz >= PGSIZE) panic("\tuvm_init: sz must be less than a page.\n");
    if (!(mem = kalloc())) panic("\tuvm_init: not enough memory.\n");
    memset(mem, 0, PGSIZE);
    map_region(
        pgdir, (void*)0, PGSIZE, (uint64_t)mem, PTE_USER | PTE_RW | PTE_PAGE);
    memmove((void*)mem, (const void*)binary, sz);
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44

// kern/proc.c

/*
 * Per-CPU process scheduler
 * Each CPU calls scheduler() after setting itself up.
 * Scheduler never returns. It loops, doing:
 *  - choose a process to run
 *  - swtch to start running that process
 *  - eventually that process transfers control
 *    via swtch back to the scheduler.
 */
void
scheduler()
{
    struct cpu* c = thiscpu;
    c->proc = NULL;

    while (1) {
        // Loop over process table looking for process to run.
        for (struct proc* p = ptable.proc; p < &ptable.proc[NPROC]; ++p) {
            acquire(&p->lock);
            if (p->state != RUNNABLE) {
                release(&p->lock);
                continue;
            }

            // Switch to chosen process. It is the process's job
            // to release its lock and then reacquire it
            // before jumping back to us.
            c->proc = p;
            uvm_switch(p);
            p->state = RUNNING;
            cprintf(
                "scheduler: switch to proc %d at CPU %d.\n", p->pid, cpuid());

            swtch(&c->scheduler, p->context);

            // Process is done running for now.
            // It should have changed its p->state before coming back.
            c->proc = NULL;
            release(&p->lock);
        }
    }
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14

// kern/vm.c

/*
 * Switch to the process's own page table for execution of it.
 */
void
uvm_switch(struct proc* p)
{
    if (!p) panic("\tuvm_switch: no process.\n");
    if (!p->kstack) panic("\tuvm_switch: no kstack.\n");
    if (!p->pgdir) panic("\tuvm_switch: no pgdir.\n");

    lttbr0(V2P(p->pgdir));  // Switch to process's address space
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17

// kern/proc.c

/*
 * A fork child's very first scheduling by scheduler()
 * will swtch to forkret. "Return" to user space.
 */
void
forkret()
{
    struct proc* p = thiscpu->proc;

    // Still holding p->lock from scheduler.
    release(&p->lock);

    // Pass trap frame pointer as an argument when calling trapret.
    usertrapret(p->tf);
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29

/* kern/trapasm.S */

/* Return falls through to trapret. */
.global trapret
trapret:
    /* Restore registers. */
    ldp x1, x2, [sp], #16
    ldp x3, x0, [sp], #16
    msr sp_el0, x1
    msr spsr_el1, x2
    msr elr_el1, x3

    ldp x1, x2, [sp], #16
    ldp x3, x4, [sp], #16
    ldp x5, x6, [sp], #16
    ldp x7, x8, [sp], #16
    ldp x9, x10, [sp], #16
    ldp x11, x12, [sp], #16
    ldp x13, x14, [sp], #16
    ldp x15, x16, [sp], #16
    ldp x17, x18, [sp], #16
    ldp x19, x20, [sp], #16
    ldp x21, x22, [sp], #16
    ldp x23, x24, [sp], #16
    ldp x25, x26, [sp], #16
    ldp x27, x28, [sp], #16
    ldp x29, x30, [sp], #16

    eret

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17

// https://github.com/mit-pdos/xv6-public/blob/master/proc.c

sp = p->kstack + KSTACKSIZE;

// Leave room for trap frame.
sp -= sizeof *p->tf;
p->tf = (struct trapframe*)sp;

// Set up new context to start executing at forkret,
// which returns to trapret.
sp -= 4;
*(uint*)sp = (uint)trapret;

sp -= sizeof *p->context;
p->context = (struct context*)sp;
memset(p->context, 0, sizeof *p->context);
p->context->eip = (uint)forkret;

1
2
3
4
5
6
7

// https://github.com/mit-pdos/xv6-riscv/blob/riscv/kernel/trap.c

// jump to trampoline.S at the top of memory, which
// switches to the user page table, restores user registers,
// and switches to user mode with sret.
uint64 fn = TRAMPOLINE + (userret - trampoline);
((void (*)(uint64,uint64))fn)(TRAPFRAME, satp);

1
2
3
4
5
6
7
8
9

/* https://github.com/mit-pdos/xv6-riscv/blob/riscv/kernel/trampoline.S */

.globl userret
userret:
        # userret(TRAPFRAME, pagetable)
        # switch from kernel to user.
        # usertrapret() calls here.
        # a0: TRAPFRAME, in user page table.
        # a1: user page table, for satp.

1
2
3
4
5
6
7
8

/* kern/trapasm.S */

/* Help forkret to call trapret in an expected way. */
.global usertrapret
usertrapret:
    /* Overlay stack pointer in trapret. */
    mov sp, x0
    b   trapret

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15

// kern/proc.c

/*
 * Give up the CPU for one scheduling round.
 */
void
yield()
{
    struct proc* p = thiscpu->proc;
    acquire(&p->lock);
    p->state = RUNNABLE;
    cprintf("yield: proc %d gives up CPU %d.\n", p->pid, cpuid());
    sched();
    release(&p->lock);
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17

// kern/proc.c

/*
 * Enter scheduler. Must hold only p->lock
 * and have changed p->state.
 */
void
sched()
{
    struct cpu* c = thiscpu;
    struct proc* p = c->proc;

    if (!holding(&p->lock)) panic("\tsched: process not locked.\n");
    if (p->state == RUNNING) panic("\tsched: process running.\n");

    swtch(&p->context, c->scheduler);
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30

// kern/proc.c

/*
 * Exit the current process. Does not return.
 * An exited process remains in the zombie state
 * until its parent calls wait() to find out it exited.
 */
void
exit(int status)
{
    struct proc* p = thiscpu->proc;

    // Temporarily disabled before user processes are implemented.
    // if (p == initproc) panic("\texit: initproc exiting.\n");

    acquire(&wait_lock);

    // Give any children to init.
    reparent(p);

    acquire(&p->lock);
    p->xstate = status;
    p->state = ZOMBIE;

    release(&wait_lock);

    // Jump into the scheduler, never return.
    sched();
    panic("\texit: zombie returned!\n");
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33

// kern/trap.c

void
trap(struct trapframe* tf)
{
    struct proc* p = thiscpu->proc;
    int src = get32(IRQ_SRC_CORE(cpuid()));
    int bad = 0;

    if (src & IRQ_CNTPNSIRQ) {
        timer(), timer_reset(), yield();
    } else if (src & IRQ_TIMER) {
        clock(), clock_reset();
    } else if (src & IRQ_GPU) {
        if (get32(IRQ_PENDING_1) & AUX_INT)
            uart_intr();
        else
            bad = 1;
    } else {
        switch (resr() >> EC_SHIFT) {
        case EC_SVC64:
            lesr(0); /* Clear esr. */
            /* Jump to syscall to handle the system call from user process */
            if (p->killed) exit(1);
            p->tf = tf;
            syscall();
            if (p->killed) exit(1);
            break;
        default: bad = 1;
        }
    }
    if (bad) panic("\ttrap: unexpected irq.\n");
}

1
2
3
4

// inc/syscallno.h

#define SYS_exec 0
#define SYS_exit 1

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26

// kern/syscall.c

extern int sys_exec();
extern int sys_exit();

static int (*syscalls[])() = {
    [SYS_exec] sys_exec,
    [SYS_exit] sys_exit,
};

int
syscall()
{
    struct proc* p = thiscpu->proc;
    int num = p->tf->x0;
    if (num >= 0 && num < NELEM(syscalls) && syscalls[num]) {
        cprintf("syscall: proc %d calls syscall %d.\n", p->pid, num);
        return syscalls[num]();
    } else {
        cprintf(
            "syscall: unknown syscall %d from proc %d (%s).\n", num, p->pid,
            p->name);
        return -1;
    }
    return 0;
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31

// kern/main.c

volatile static int started = 0;

void
main()
{
    extern char edata[], end[], vectors[];

    if (cpuid() == 0) {
        memset(edata, 0, end - edata);
        console_init();
        cprintf("main: [CPU 0] init started.\n");
        alloc_init();
        proc_init();
        lvbar(vectors);
        irq_init();
        timer_init();
        user_init();
        started = 1;  // allow APs to run
    } else {
        while (!started) {}
        cprintf("main: [CPU %d] init started.\n", cpuid());
        lvbar(vectors);
        timer_init();
    }

    cprintf("main: [CPU %d] init success.\n", cpuid());

    scheduler();
}

1

make qemu

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23

console_init: success.
main: [CPU 0] init started.
alloc_init: success.
proc_init: success.
irq_init: success.
timer_init: success at CPU 0.
proc_alloc: proc 1 success.
user_init: proc 1 (initproc) success.
main: [CPU 0] init success.
main: [CPU 3] init started.
main: [CPU 2] init started.
timer_init: success at CPU 3.
main: [CPU 1] init started.
main: [CPU 3] init success.
timer_init: success at CPU 2.
main: [CPU 2] init success.
scheduler: switch to proc 1 at CPU 0.
timer_init: success at CPU 1.
main: [CPU 1] init success.
syscall: proc 1 calls syscall 0.
sys_exec: executing /init with parameters: /init
syscall: proc 1 calls syscall 1.
sys_exit: in exit.
